Cu-Beam Up suspended light
An ultra-wide distribution of powerful up-light.
Other colours available, contact us for more details.
• Heat pipe technology maintains LED brightness
• A custom lens focuses 7800 lumens. From one LED.
• Custom-built driver controls the light's functions
£1,500.00
£1,250.00 excluding VAT
Key features
Powerful, fully-adjustable up-light. From a single fixture.
Focuses a single light source to evenly cast an ultra-wide, dimmable pool of ambient up-light across open spaces.
Fluorescent lighting is flawed. LEDs can underperform.
Fluorescent lighting can be inefficient, it wastes light and uses costly-to-replace bulbs, while LEDs can suffer from overheating, affecting their longevity and brightness.
Key technology
-
Heat pipe technology maintains LED brightness
Continuous cooling cycle increases the single LED's longevity with no loss or deterioration of light quality.
-
A custom lens focuses 7800 lumens. From one LED.
The custom-engineered lens optimises and maximises the single high-power LED, for an even spread of powerful, ambient light, whatever the task.
-
High efficacy
A custom-engineered lens combined with effective cooling means that each fixture runs at 92lm/W (at 4000K).
Additional features
-
Brightness means lightness
Each wing of the Cu-Beam Up light is made of 37 lightweight aluminium fins, so it weighs just 2.9kg.
-
No glare
By putting light precisely where it needs to be, Cu-Beam Up lights prevent wasted light in all directions and reduce eye strain.
-
No flicker
Custom-built drivers control the light's functions. They manage power, voltage fluctuations and the ratio of up light.
-
More light
High-power single LEDs and a custom-engineered lens provide powerful light that can illuminate a wide area.
-
Compact and lightweight
Cu-Beam Up measures 720mm across, weighing just 2.9kg. The unit 'floats' in space for minimal spatial intrusion.
-
Specifications
-
Weight
2.9 kg
-
Colour temperature
4,000 K
-
Light source
Chip on board LEDs
-
CRI
80 minimum
-
Rated power
57 W
-
Light output
7,800 lm
-
Luminous efficacy
92 l/W
-
LED life time
180,000 hrs
-
Beam angle
160 degrees
-
Frequency
50/60 hz
-
Standby power consumption
0.5 W
-
Length
720 mm
-
Width
130 mm
-
Height
203 mm
Useful documents
Frequently asked questions
Use a microfibre cloth, or solvent- and moisture-free compressed air canister, to clean the appliance. Always ensure the appliance is turned off before any cleaning.
The appliance is designed for dry, indoor locations only.
Operating environment range 0°C (32°F) to 40°C (104°F) and 10-95% RH non-condensing.
This appliance is only compatible with DALI-compliant dimmer products.
Cu-Beam Up suspended light
£1,500.00
£1,250.00 excluding VAT
Choose your model
-
Dyson Cu Beam Up suspended light
An ultra-wide distribution of powerful up-light.
• Dimensions: L 720 x W 130 x H 203 mm
£1,500.00
£1,250.00 excluding VAT
-

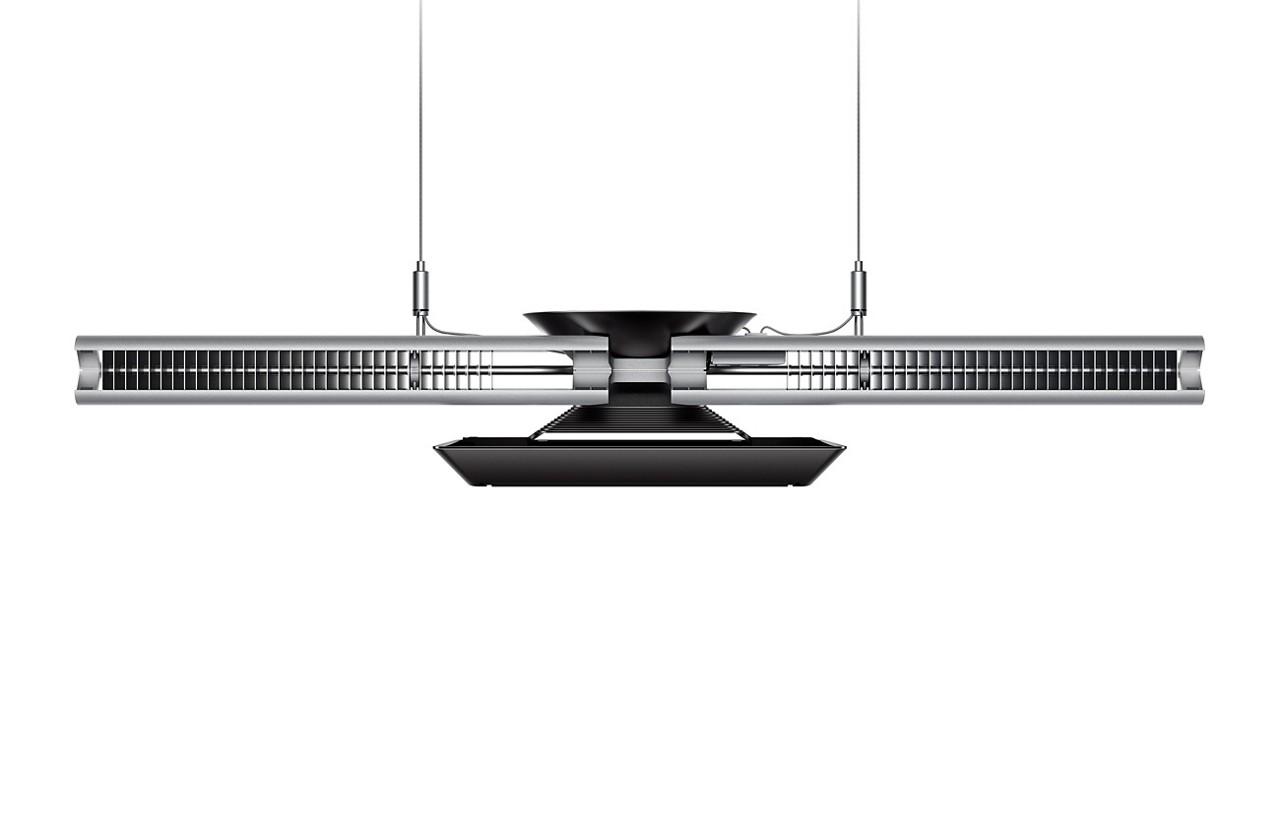

Dyson Cu-Beam Duo suspended light
Powerful and precise. The only fully flexible up and down-light.
• Dimensions: L 725 x W 206 x H 97mm
£1,750.00
£1,458.33 excluding VAT
-
Dyson Cu-Beam Down suspended light
Powerful, focused light. From one LED. In a single fixture.
• Dimensions: L 720 x W 130 x H 170 mm
£1,500.00
£1,250.00 excluding VAT
